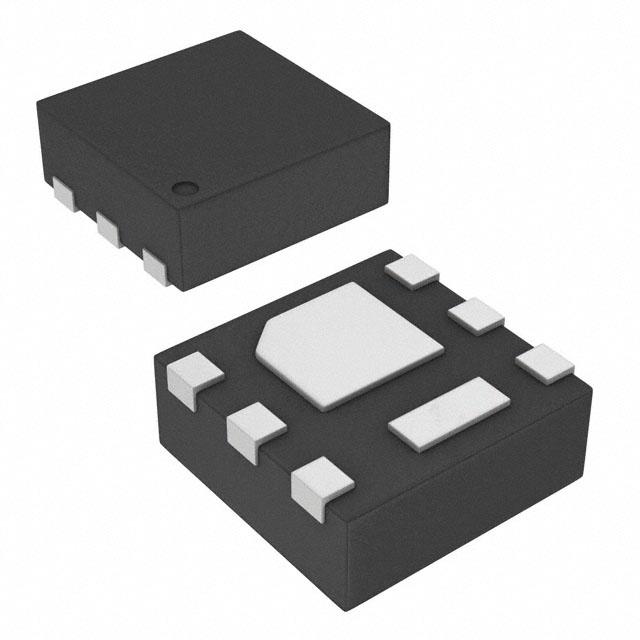

CSD17313Q2Q1

Texas Instruments OEM P/N：CSD17313Q2Q1
rohs compliant MOSFET N-CH 30V 5A 6WSON

9,340 pcs

N/A

6-WDFN Exposed Pad

$0.2483 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 5A (Tc) Drive Voltage (Max Rds On, Min Rds On) 3V, 8V
Rds On (Max) @ Id, Vgs 30mOhm @ 4A, 8V Vgs(th) (Max) @ Id 1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 2.7 nC @ 4.5 V Vgs (Max) +10V, -8V
Input Capacitance (Ciss) (Max) @ Vds 340 pF @ 15 V FET Feature -
Power Dissipation (Max) 2.3W (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive Qualification AEC-Q100
Mounting Type Surface Mount Supplier Device Package 6-WSON (2x2)
Package / Case 6-WDFN Exposed Pad
