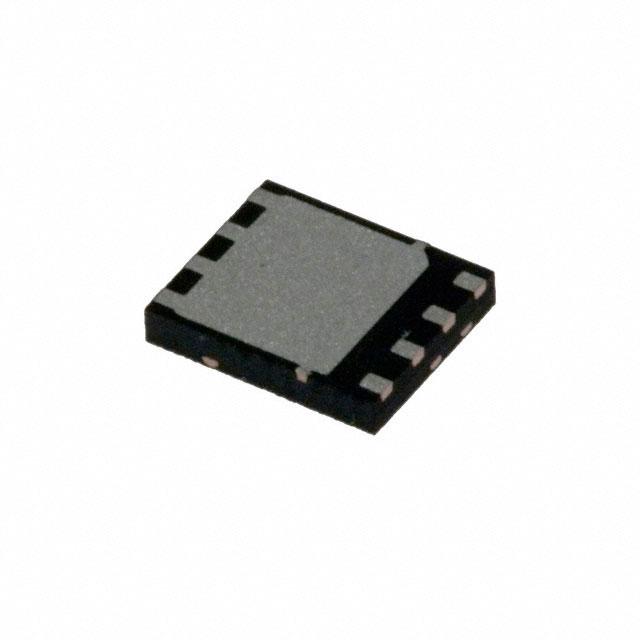

CSD17304Q3

Texas Instruments OEM P/N：CSD17304Q3
rohs compliant MOSFET N-CH 30V 15A/56A 8VSON

27,540 pcs

N/A

8-PowerTDFN

$0.2969 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 56A (Tc) Drive Voltage (Max Rds On, Min Rds On) 3V, 8V
Rds On (Max) @ Id, Vgs 7.5mOhm @ 17A, 8V Vgs(th) (Max) @ Id 1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6.6 nC @ 4.5 V Vgs (Max) +10V, -8V
Input Capacitance (Ciss) (Max) @ Vds 955 pF @ 15 V FET Feature -
Power Dissipation (Max) 2.7W (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 8-VSON-CLIP (3.3x3.3)
Package / Case 8-PowerTDFN
