Download Datasheet

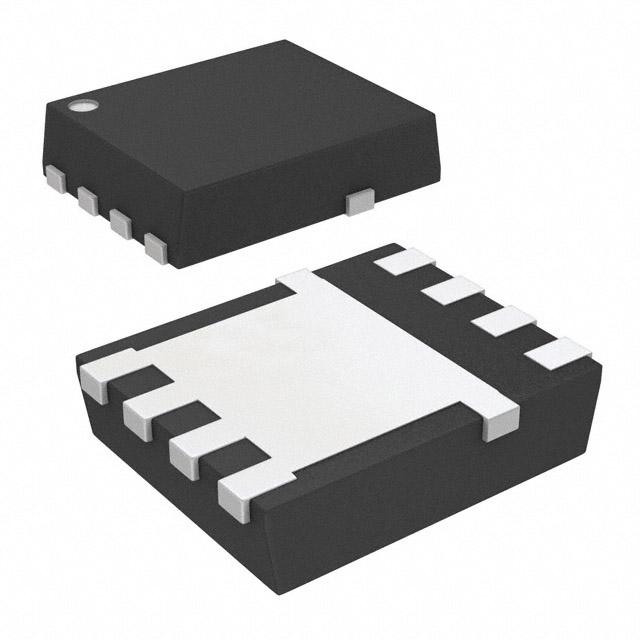

CSD16404Q5A

Texas Instruments OEM P/N：CSD16404Q5A
rohs compliant MOSFET N-CH 25V 21A/81A 8VSON

19,190 pcs

N/A

8-PowerTDFN

$0.3751 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 25 V
Current - Continuous Drain (Id) @ 25°C 21A (Ta), 81A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 5.1mOhm @ 20A, 10V Vgs(th) (Max) @ Id 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 8.5 nC @ 4.5 V Vgs (Max) +16V, -12V
Input Capacitance (Ciss) (Max) @ Vds 1220 pF @ 12.5 V FET Feature -
Power Dissipation (Max) 3W (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 8-VSONP (5x6)
Package / Case 8-PowerTDFN

Related Products

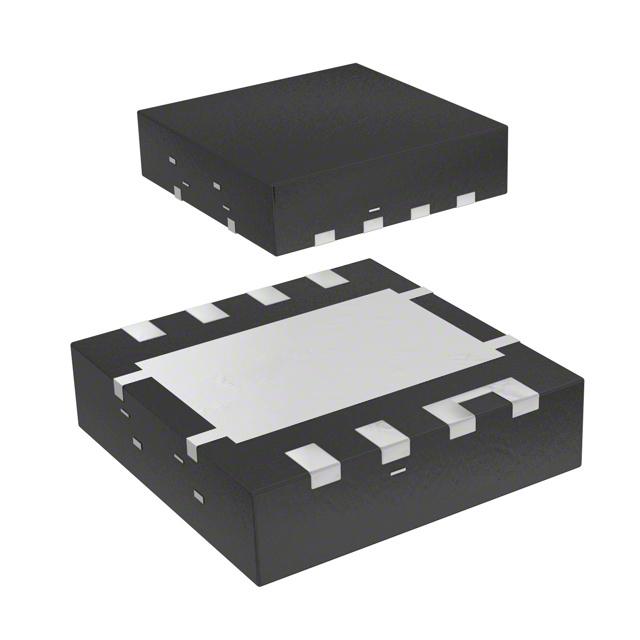

CSD87333Q3D
