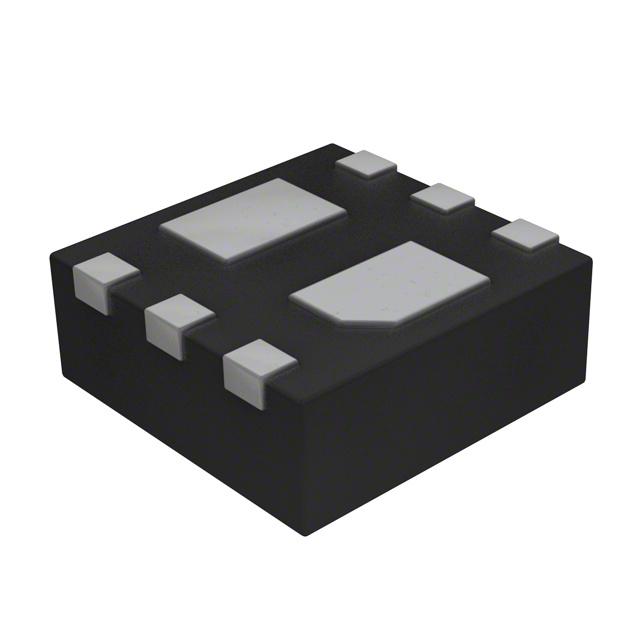

CSD15571Q2

Texas Instruments OEM P/N：CSD15571Q2
rohs compliant MOSFET N-CH 20V 22A 6SON

25,250 pcs

N/A

6-WDFN Exposed Pad

$0.1309 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 22A (Ta) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 15mOhm @ 5A, 10V Vgs(th) (Max) @ Id 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6.7 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 419 pF @ 10 V FET Feature -
Power Dissipation (Max) 2.5W (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 6-SON (2x2)
Package / Case 6-WDFN Exposed Pad
