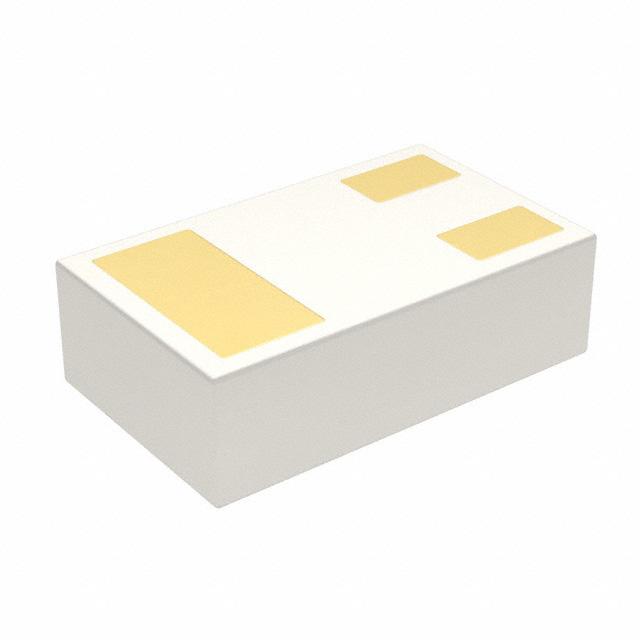

CSD13383F4

Texas Instruments OEM P/N：CSD13383F4
rohs compliant MOSFET N-CH 12V 2.9A 3PICOSTAR

14,380 pcs

N/A

3-XFDFN

$0.0912 (For reference only.)
QUICK RFQ

Specifications

Series FemtoFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 12 V
Current - Continuous Drain (Id) @ 25°C 2.9A (Ta) Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 44mOhm @ 500mA, 4.5V Vgs(th) (Max) @ Id 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 2.6 nC @ 4.5 V Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 291 pF @ 6 V FET Feature -
Power Dissipation (Max) 500mW (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 3-PICOSTAR
Package / Case 3-XFDFN
