Download Datasheet

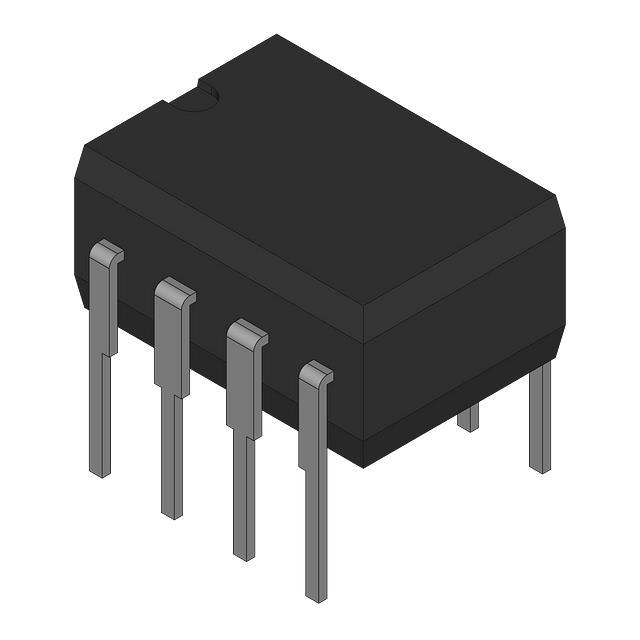

6N139

Texas Instruments OEM P/N：6N139
LOGIC IC OUTPUT OPTOCOUPLER

10,280 pcs

N/A

8-DIP (0.300", 7.62mm)

$0.4675 (For reference only.)
QUICK RFQ

Specifications

Series - Number of Channels 1
Voltage - Isolation 5300Vrms Current Transfer Ratio (Min) 500% @ 1.6mA
Current Transfer Ratio (Max) - Turn On / Turn Off Time (Typ) 600ns, 1.5µs
Rise / Fall Time (Typ) - Input Type DC
Output Type Darlington with Base Voltage - Output (Max) 18V
Current - Output / Channel 60mA Voltage - Forward (Vf) (Typ) 1.4V
Current - DC Forward (If) (Max) 25 mA Vce Saturation (Max) -
Grade - Qualification -
Operating Temperature -55°C ~ 100°C Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm) Supplier Device Package 8-DIP
