Download Datasheet

B82789S0223H001

TDK Corporation OEM P/N：B82789S0223H001
rohs compliant CHOKES

15,120 pcs

N/A

4-SMD, J-Lead

$0.9559 (For reference only.)
QUICK RFQ

Specifications

Series B82789C0/S0 Filter Type Signal Line
Number of Lines 2 Impedance @ Frequency -
Inductance @ Frequency 22 µH @ 100 kHz Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 580mOhm (Typ) Voltage Rating - DC 80V
Voltage Rating - AC 42V Operating Temperature -55°C ~ 150°C
Ratings AEC-Q200 Approval Agency -
Features - Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm) Height (Max) 0.118" (3.00mm)
Package / Case 4-SMD, J-Lead

Related Products

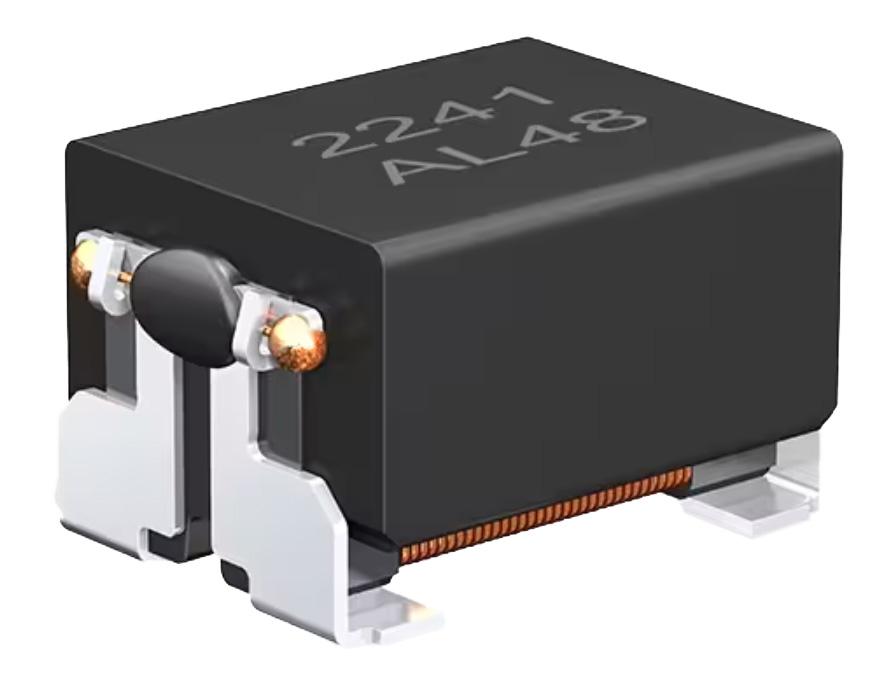

ADM45FDC-100M
