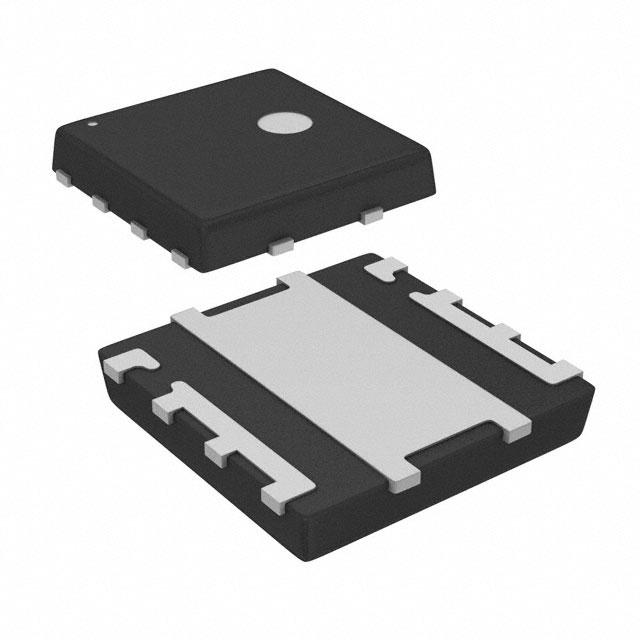

STL7N60M2

STMicroelectronics OEM P/N：STL7N60M2
rohs compliant MOSFET N-CH 600V 5A POWERFLAT

8,230 pcs

N/A

8-PowerVDFN

$0.6123 (For reference only.)
QUICK RFQ

Specifications

Series MDmesh™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 5A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1.05Ohm @ 2A, 10V Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 8.8 nC @ 10 V Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 271 pF @ 100 V FET Feature -
Power Dissipation (Max) 4W (Ta), 67W (Tc) Operating Temperature 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package PowerFLAT™ (5x5)
Package / Case 8-PowerVDFN
