Download Datasheet

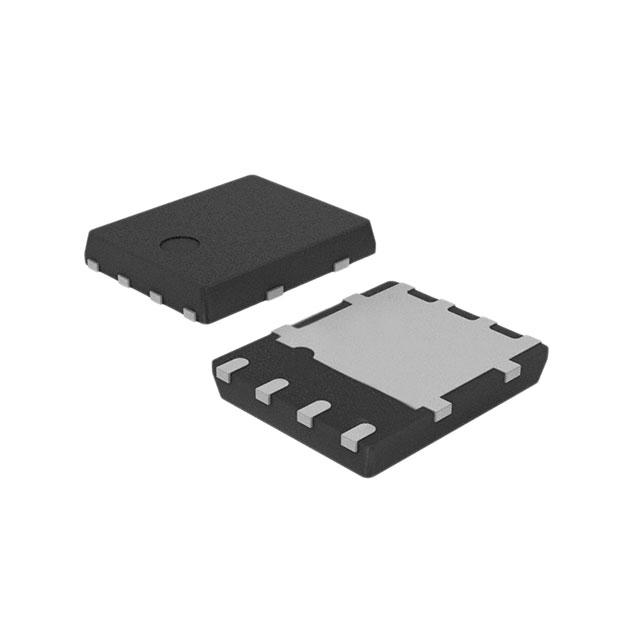

STL160N4F7

STMicroelectronics OEM P/N：STL160N4F7
rohs compliant MOSFET N-CH 40V 120A POWERFLAT

15,360 pcs

N/A

8-PowerVDFN

$0.6055 (For reference only.)
QUICK RFQ

Specifications

Series STripFET™ F7 FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 120A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 2.5mOhm @ 16A, 10V Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2300 pF @ 25 V FET Feature -
Power Dissipation (Max) 111W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package PowerFlat™ (5x6)
Package / Case 8-PowerVDFN
