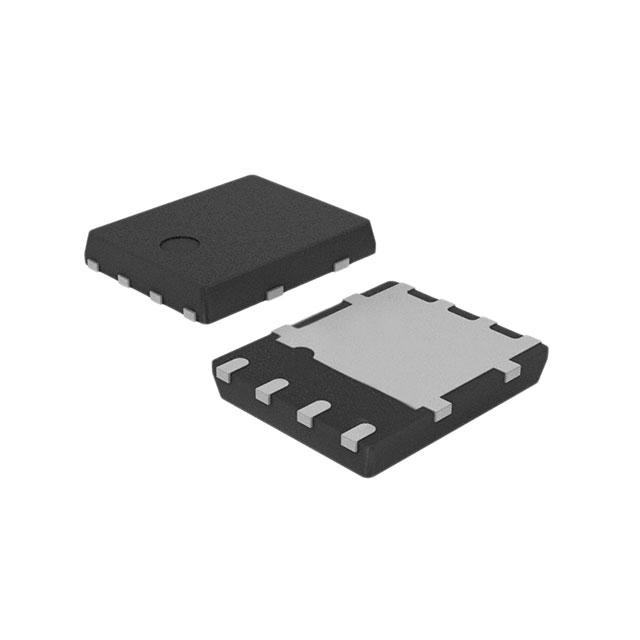

STL160N3LLH6

STMicroelectronics OEM P/N：STL160N3LLH6
rohs compliant MOSFET N-CH 30V 160A POWERFLAT

3,210 pcs

N/A

8-PowerVDFN

Price: N/A
QUICK RFQ

Specifications

Series DeepGATE™, STripFET™ VI FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 160A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.3mOhm @ 17.5A, 10V Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 61.5 nC @ 4.5 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 6375 pF @ 25 V FET Feature -
Power Dissipation (Max) 136W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package PowerFlat™ (5x6)
Package / Case 8-PowerVDFN
