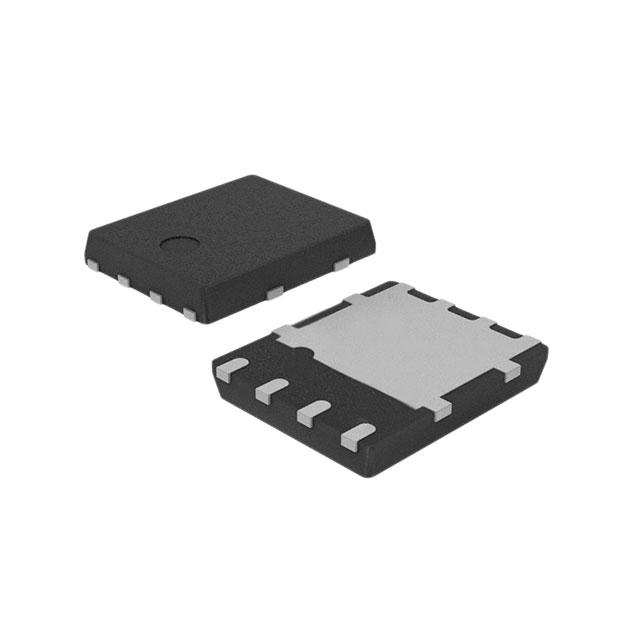

STL12P6F6

STMicroelectronics OEM P/N：STL12P6F6
rohs compliant MOSFET P-CH 60V 4A POWERFLAT

10,990 pcs

N/A

8-PowerVDFN

$0.4045 (For reference only.)
QUICK RFQ

Specifications

Series DeepGATE™, STripFET™ VI FET Type P-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 4A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 160mOhm @ 1.5A, 10V Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6.4 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 340 pF @ 48 V FET Feature -
Power Dissipation (Max) 75W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package PowerFlat™ (5x6)
Package / Case 8-PowerVDFN
