Download Datasheet

STH3N150-2

STMicroelectronics OEM P/N：STH3N150-2
rohs compliant MOSFET N-CH 1500V 2.5A H2PAK

10,890 pcs

N/A

TO-263-3, D²Pak (2 Leads + Tab) Variant

$2.5764 (For reference only.)
QUICK RFQ

Specifications

Series PowerMESH™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 1500 V
Current - Continuous Drain (Id) @ 25°C 2.5A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 9Ohm @ 1.3A, 10V Vgs(th) (Max) @ Id 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29.3 nC @ 10 V Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 939 pF @ 25 V FET Feature -
Power Dissipation (Max) 140W (Tc) Operating Temperature 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package H²PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab) Variant

Related Products

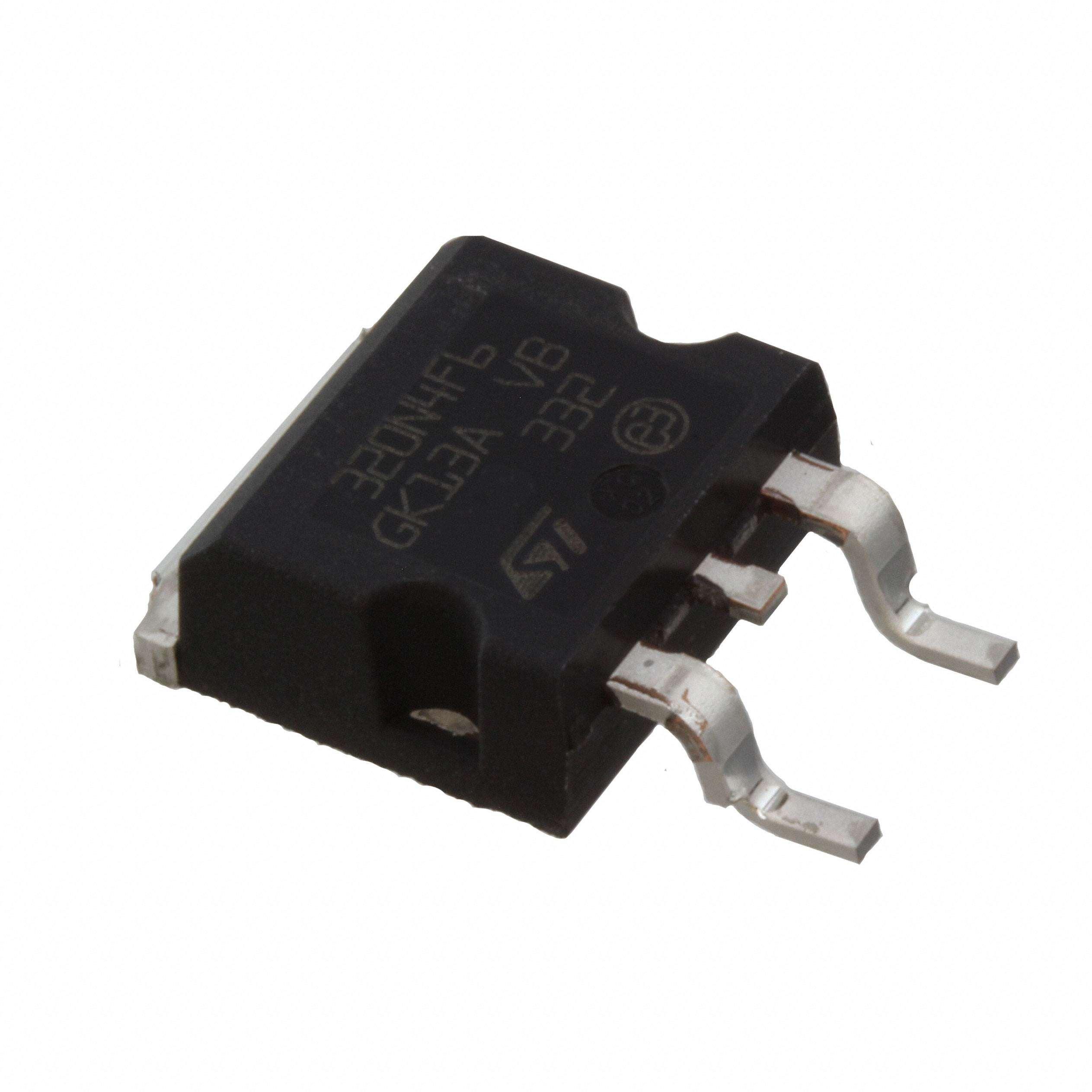

STH320N4F6-2
STH320N4F6-2

MOSFET N-CH 40V 200A H2PAK

TO-263-3, D²Pak (2 Leads + Tab) Variant View

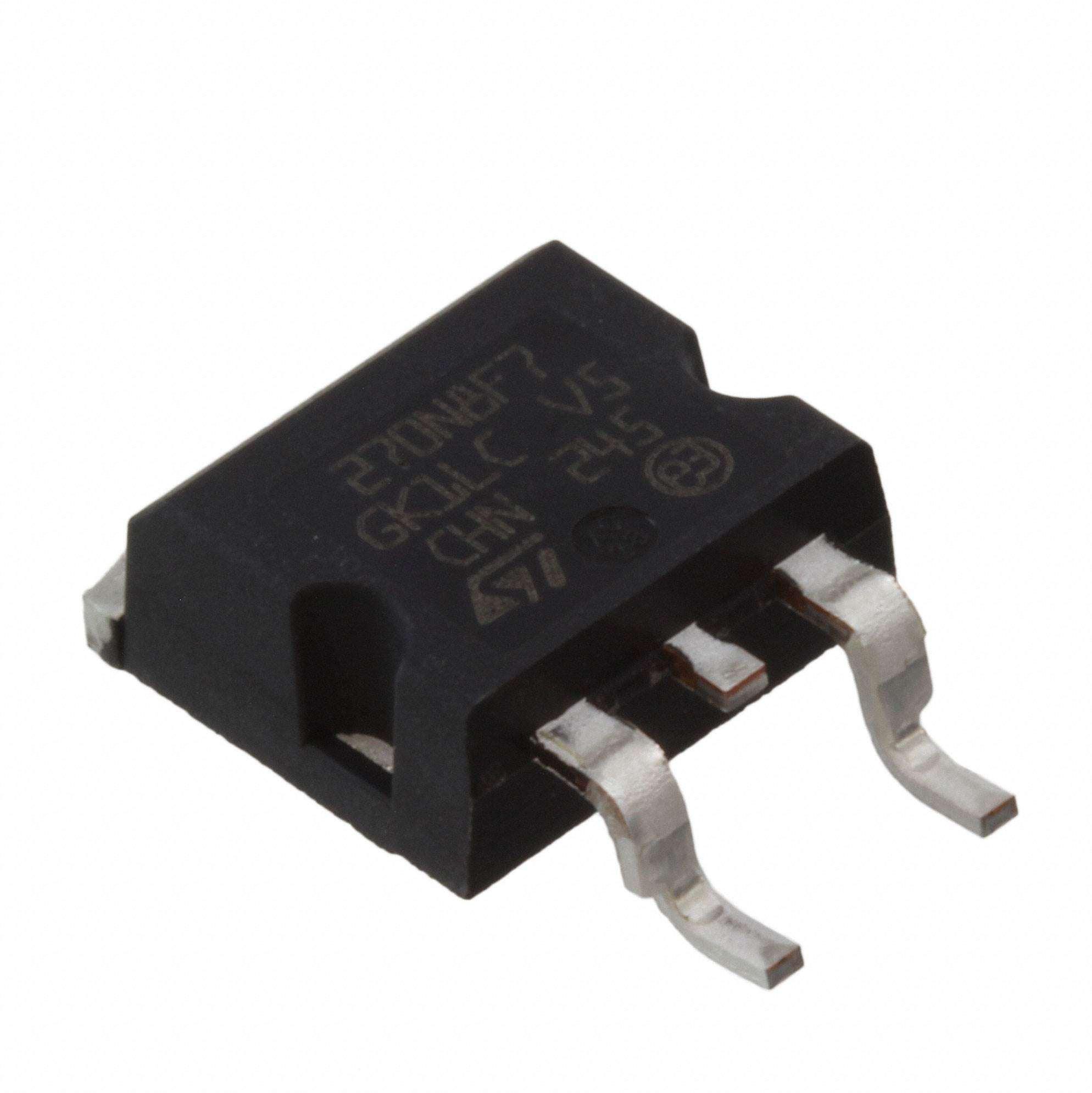

STH270N8F7-2
