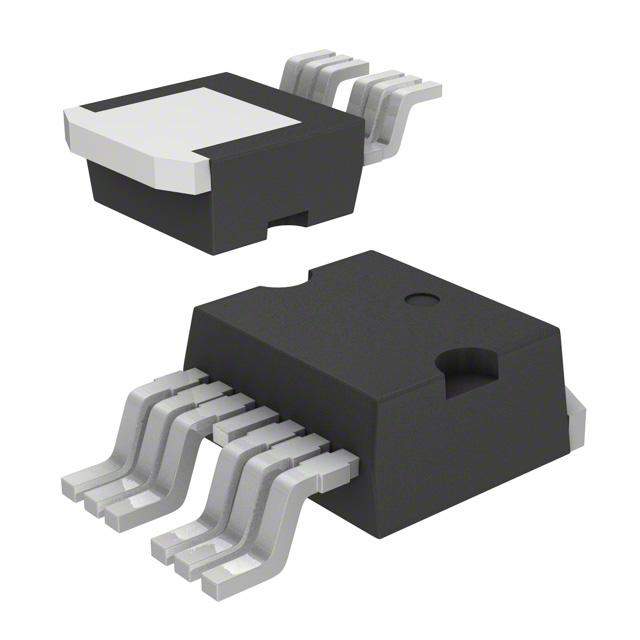

STH240N10F7-6

STMicroelectronics OEM P/N：STH240N10F7-6
rohs compliant MOSFET N-CH 100V 180A H2PAK-6

15,490 pcs

N/A

TO-263-7, D²Pak (6 Leads + Tab)

$2.0563 (For reference only.)
QUICK RFQ

Specifications

Series STripFET™ F7 FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 180A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 2.5mOhm @ 60A, 10V Vgs(th) (Max) @ Id 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 160 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 11550 pF @ 25 V FET Feature -
Power Dissipation (Max) 300W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package H2PAK-6
Package / Case TO-263-7, D²Pak (6 Leads + Tab)

Related Products

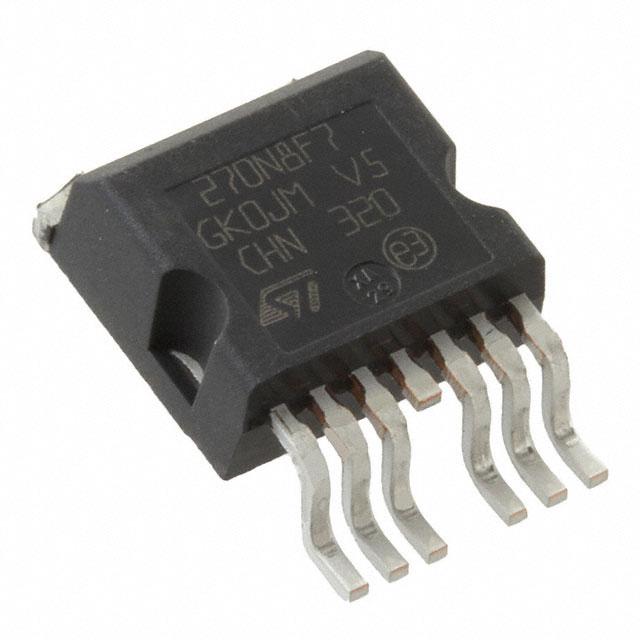

STH270N8F7-6
