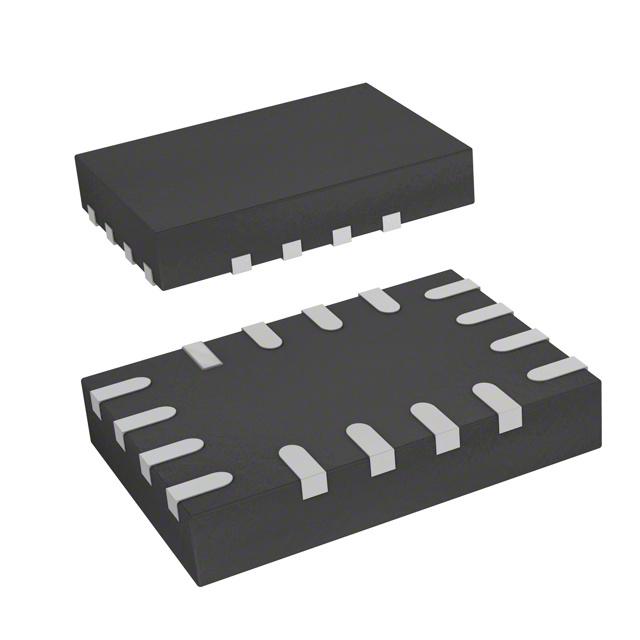

STG3699BVTR

STMicroelectronics OEM P/N：STG3699BVTR
rohs compliant IC SWITCH SPDT X 4 500MOHM 16QFN

1,750 pcs

N/A

16-UFQFN

Price: N/A
QUICK RFQ

Specifications

Series - Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1 Number of Circuits 4
On-State Resistance (Max) 500mOhm Channel-to-Channel Matching (ΔRon) 150mOhm
Voltage - Supply, Single (V+) 1.65V ~ 4.3V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 55ns, 30ns -3db Bandwidth 40MHz
Charge Injection 57pC Channel Capacitance (CS(off), CD(off)) 5pF
Current - Leakage (IS(off)) (Max) 20nA Crosstalk -72dB @ 100kHz
Operating Temperature -55°C ~ 125°C (TA) Mounting Type Surface Mount
Package / Case 16-UFQFN Supplier Device Package 16-QFN (2.6x1.8)
