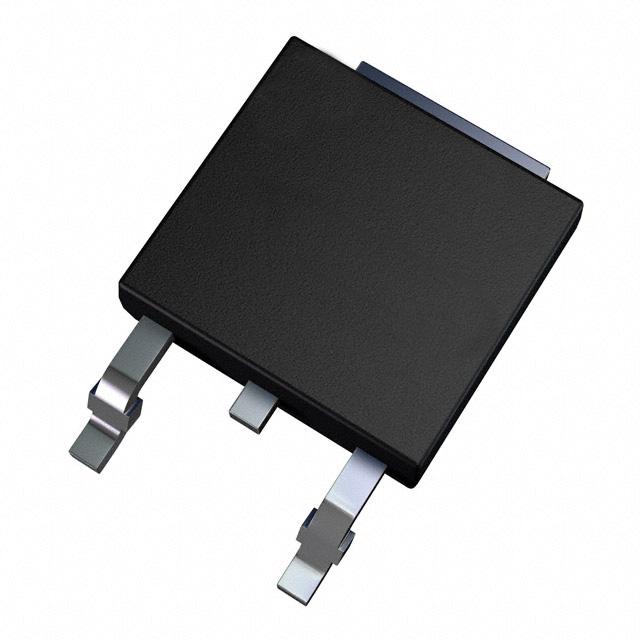

STD45N10F7

STMicroelectronics OEM P/N：STD45N10F7
rohs compliant MOSFET N-CH 100V 45A DPAK

28,000 pcs

N/A

TO-252-3, DPak (2 Leads + Tab), SC-63

$0.6344 (For reference only.)
QUICK RFQ

Specifications

Series DeepGATE™, STripFET™ VII FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 45A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 18mOhm @ 22.5A, 10V Vgs(th) (Max) @ Id 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 25 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1640 pF @ 50 V FET Feature -
Power Dissipation (Max) 60W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
