Download Datasheet

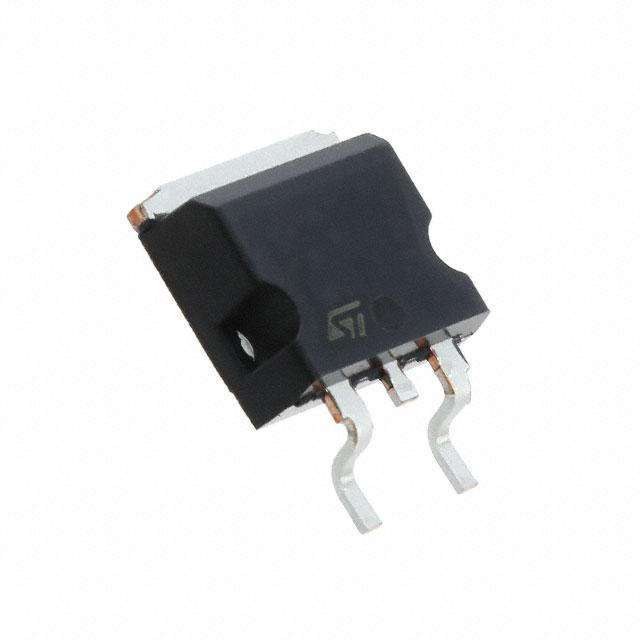

STB35N60DM2

STMicroelectronics OEM P/N：STB35N60DM2
rohs compliant MOSFET N-CH 600V 28A D2PAK

3,320 pcs

N/A

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

$2.7993 (For reference only.)
QUICK RFQ

Specifications

Series MDmesh™ DM2 FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 28A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 110mOhm @ 14A, 10V Vgs(th) (Max) @ Id 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 54 nC @ 10 V Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 2400 pF @ 100 V FET Feature -
Power Dissipation (Max) 210W (Tc) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
