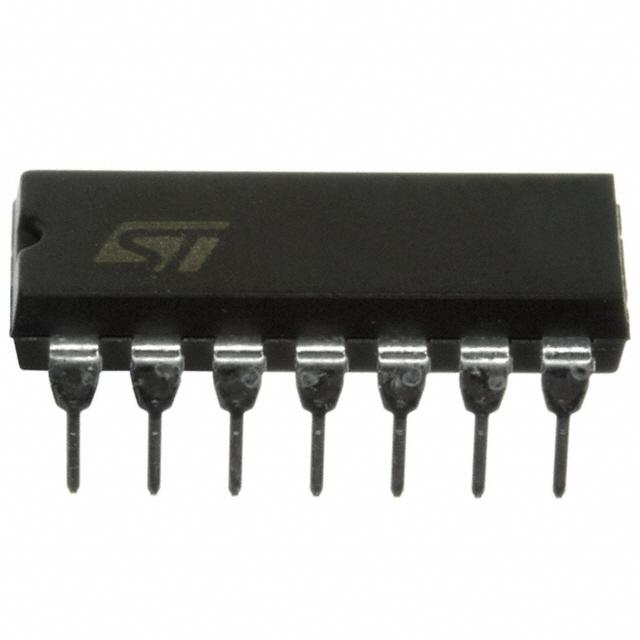

M74HC4016B1R

STMicroelectronics OEM P/N：M74HC4016B1R
rohs compliant IC SWITCH SPST-NOX4 120OHM 14DIP

12,840 pcs

N/A

14-DIP (0.279", 7.10mm)

Price: N/A
QUICK RFQ

Specifications

Series - Switch Circuit SPST - NO
Multiplexer/Demultiplexer Circuit 1:1 Number of Circuits 4
On-State Resistance (Max) 120Ohm Channel-to-Channel Matching (ΔRon) 6Ohm
Voltage - Supply, Single (V+) 2V ~ 12V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 14ns, 24ns -3db Bandwidth 42MHz
Charge Injection - Channel Capacitance (CS(off), CD(off)) 1pF, 5pF
Current - Leakage (IS(off)) (Max) 100nA Crosstalk -50dB @ 1MHz
Operating Temperature -55°C ~ 125°C (TA) Mounting Type Through Hole
Package / Case 14-DIP (0.279", 7.10mm) Supplier Device Package 14-DIP
