Download Datasheet

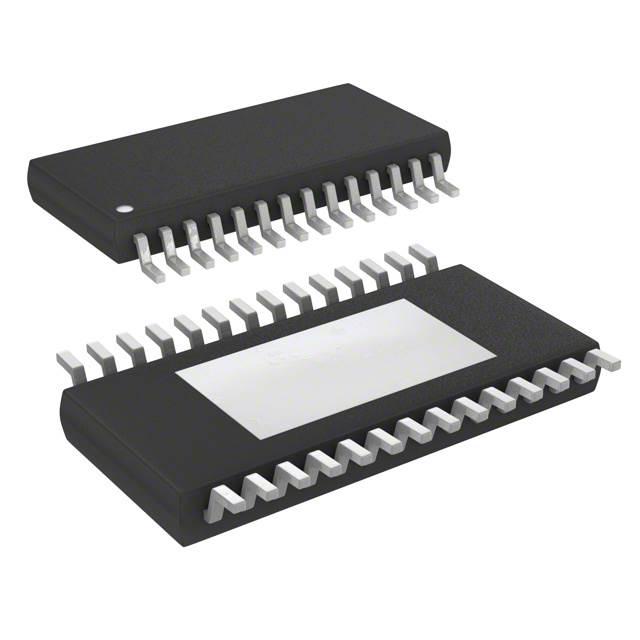

L6470H

STMicroelectronics OEM P/N：L6470H
rohs compliant IC MTR DRV BIPLR 3.3/5V 28HTSSOP

9,590 pcs

N/A

28-TSSOP (0.173", 4.40mm Width) Exposed Pad

$6.8595 (For reference only.)
QUICK RFQ

Specifications

Series STSPIN L64 Motor Type - Stepper Bipolar
Motor Type - AC, DC - Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4) Interface SPI
Technology DMOS Step Resolution 1 ~ 1/128
Applications General Purpose Current - Output 3A
Voltage - Supply 3.3V, 5V Voltage - Load 8V ~ 45V
Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Surface Mount
Package / Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad Supplier Device Package 28-HTSSOP

Related Products

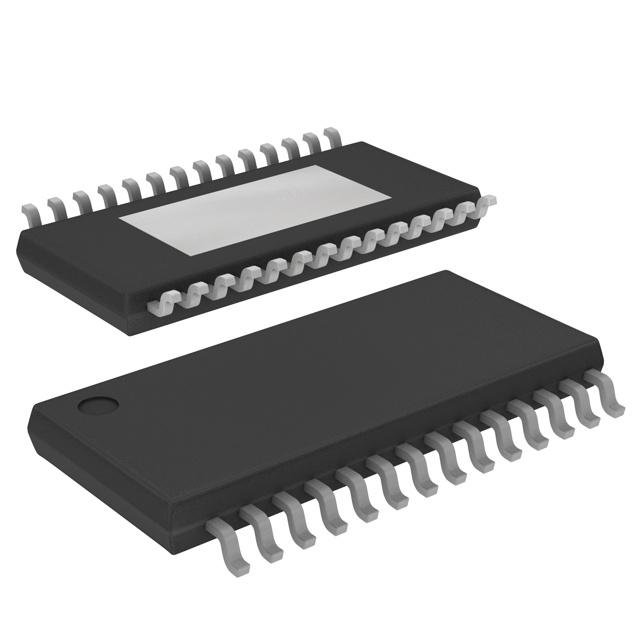

L6472HTR
