Download Datasheet

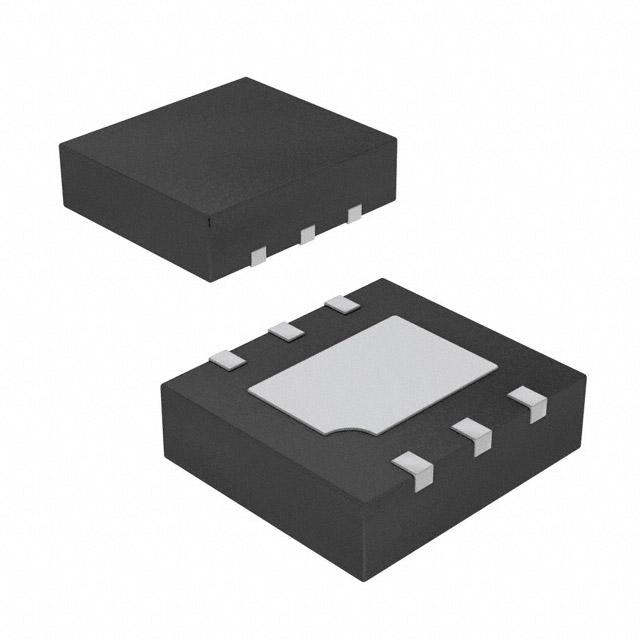

ESDA17P100-1U2M

STMicroelectronics OEM P/N：ESDA17P100-1U2M
rohs compliant TVS DIODE 15VWM 30VC 6UQFN

4,690 pcs

N/A

6-UFDFN Exposed Pad

$0.1679 (For reference only.)
QUICK RFQ

Specifications

Series ESDA Type Zener
Unidirectional Channels 1 Bidirectional Channels -
Voltage - Reverse Standoff (Typ) 15V (Max) Voltage - Breakdown (Min) 15.7V
Voltage - Clamping (Max) @ Ipp 30V Current - Peak Pulse (10/1000µs) 160A (8/20µs)
Power - Peak Pulse 4800W (4.8kW) Power Line Protection No
Applications General Purpose Capacitance @ Frequency 1200pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TJ) Grade -
Qualification - Mounting Type Surface Mount
Package / Case 6-UFDFN Exposed Pad Supplier Device Package 6-µQFN (1.8x2)
