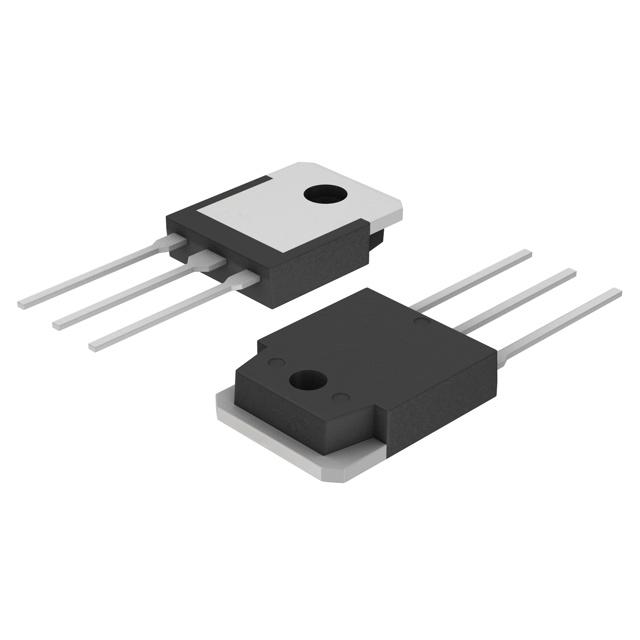

2SD1047

STMicroelectronics OEM P/N：2SD1047
rohs compliant TRANS NPN 140V 12A TO3P

27,200 pcs

N/A

TO-3P-3, SC-65-3

$4.046 (For reference only.)
QUICK RFQ

Specifications

Series - Transistor Type NPN
Current - Collector (Ic) (Max) 12 A Voltage - Collector Emitter Breakdown (Max) 140 V
Vce Saturation (Max) @ Ib, Ic 700mV @ 700mA, 7A Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 1A, 5V Power - Max 100 W
Frequency - Transition 20MHz Operating Temperature 150°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-3P
