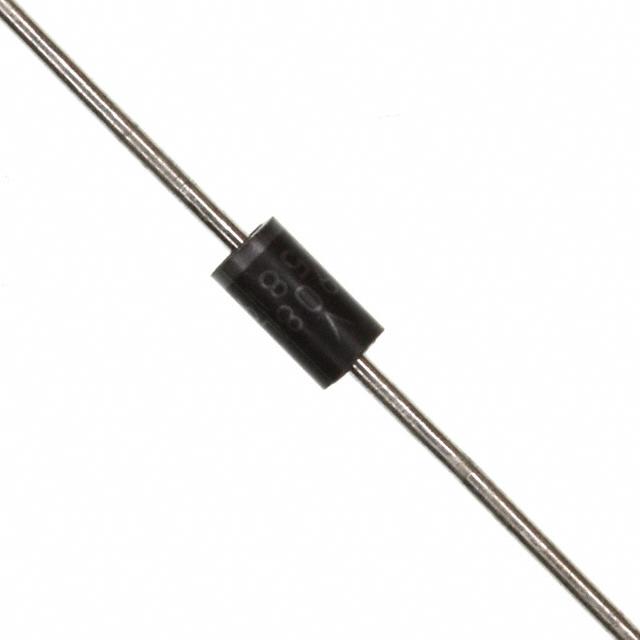

1N5819

STMicroelectronics OEM P/N：1N5819
rohs compliant SCHOTTKY DO15 40V 1A 150C

17,370 pcs

N/A

DO-204AL, DO-41, Axial

$0.0908 (For reference only.)
QUICK RFQ

Specifications

Series - Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) - Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F - Grade -
Qualification - Mounting Type Through Hole
Package / Case DO-204AL, DO-41, Axial Supplier Device Package DO-41
Operating Temperature - Junction 150°C (Max)
