Download Datasheet

BUK4D16-20X

Nexperia OEM P/N：BUK4D16-20X
rohs compliant SMALL SIGNAL MOSFET FOR AUTOMOTI

13,570 pcs

N/A

6-UDFN Exposed Pad

$0.1303 (For reference only.)
QUICK RFQ

Specifications

Series TrenchMOS™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 8.5A (Ta), 26A (Tc) Drive Voltage (Max Rds On, Min Rds On) 2.5V, 8V
Rds On (Max) @ Id, Vgs 14mOhm @ 9A, 8V Vgs(th) (Max) @ Id 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 15 nC @ 4.5 V Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 931 pF @ 10 V FET Feature -
Power Dissipation (Max) 2W (Ta), 19W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade Automotive Qualification AEC-Q101
Mounting Type Surface Mount Supplier Device Package DFN2020MD-6
Package / Case 6-UDFN Exposed Pad

Related Products

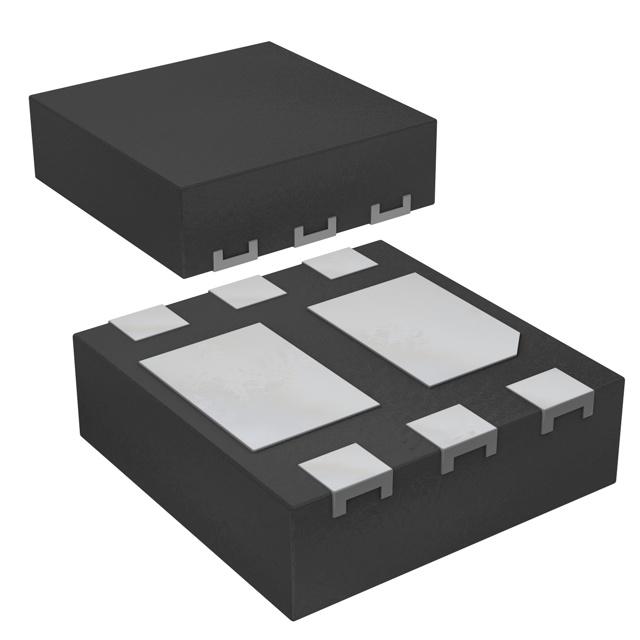

PBSS4260PANSX
