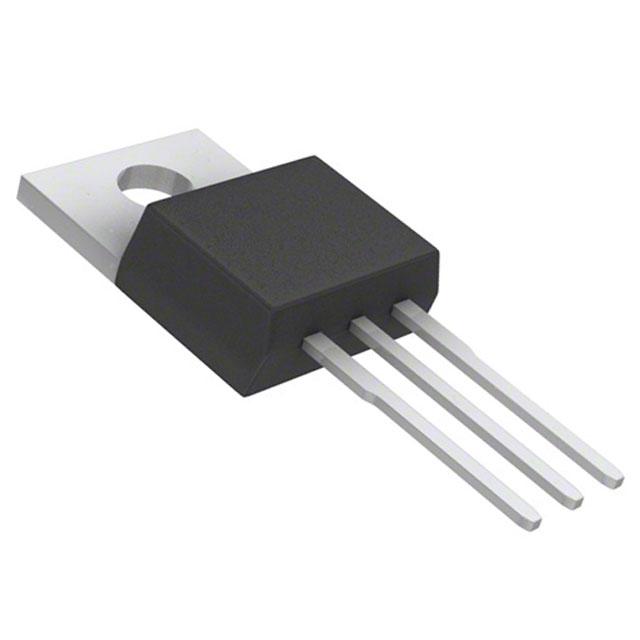

PSMN1R9-40PLQ

NEXPERIA OEM P/N：PSMN1R9-40PLQ
rohs compliant MOSFET N-CH 40V 150A TO220AB

24,120 pcs

N/A

TO-220-3

$3.043 (For reference only.)
QUICK RFQ

Specifications

Series - FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 150A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1.7mOhm @ 25A, 10V Vgs(th) (Max) @ Id 2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 120 nC @ 5 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 13200 pF @ 25 V FET Feature -
Power Dissipation (Max) 349W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Supplier Device Package TO-220AB
Package / Case TO-220-3
