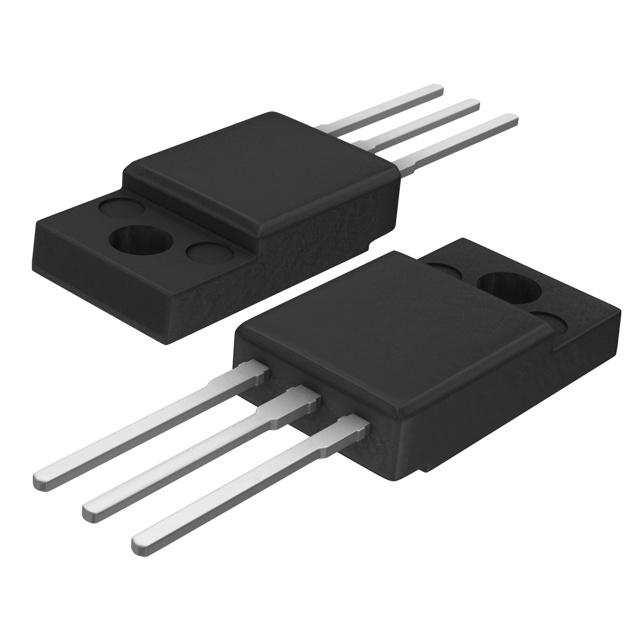

PSMN027-100XS,127

NEXPERIA OEM P/N：PSMN027-100XS,127
rohs compliant MOSFET N-CH 100V 23.4A TO220F

21,380 pcs

N/A

TO-220-3 Full Pack, Isolated Tab

Price: N/A
QUICK RFQ

Specifications

Series - FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 23.4A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 26.8mOhm @ 5A, 10V Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 30 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1624 pF @ 50 V FET Feature -
Power Dissipation (Max) 41.1W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Supplier Device Package TO-220F
Package / Case TO-220-3 Full Pack, Isolated Tab
