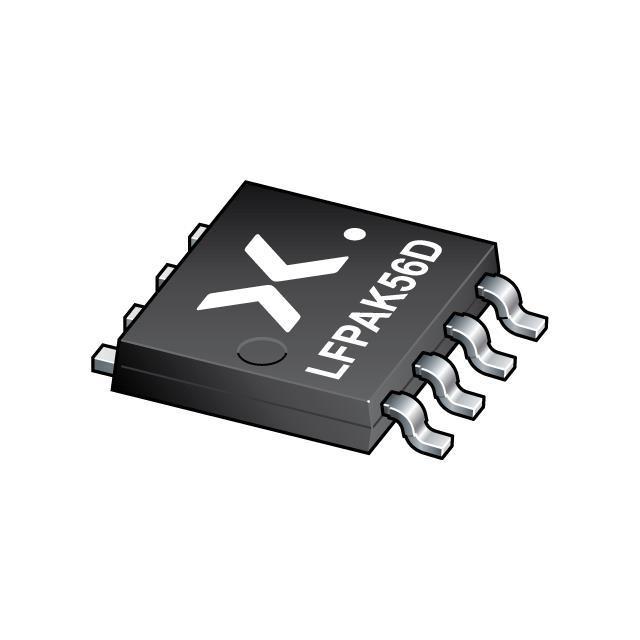

PSMN025-100HSX

NEXPERIA OEM P/N：PSMN025-100HSX
rohs compliant MOSFET 2N-CH 100V 29.5A LFPAK56D

5,680 pcs

N/A

SOT-1205, 8-LFPAK56

$0.7298 (For reference only.)
QUICK RFQ

Specifications

Series - Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual) FET Feature -
Drain to Source Voltage (Vdss) 100V Current - Continuous Drain (Id) @ 25°C 29.5A (Ta)
Rds On (Max) @ Id, Vgs 24.5mOhm @ 10A, 10V Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 38.1nC @ 10V Input Capacitance (Ciss) (Max) @ Vds 2436pF @ 25V
Power - Max 68W (Ta) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Package / Case SOT-1205, 8-LFPAK56
Supplier Device Package LFPAK56D
