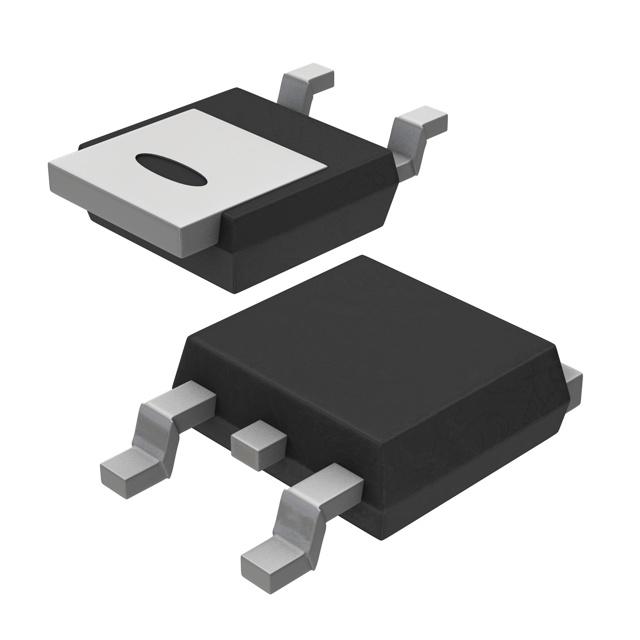

PHD101NQ03LT,118

Nexperia OEM P/N：PHD101NQ03LT,118
rohs compliant MOSFET N-CH 30V 75A DPAK

17,070 pcs

N/A

TO-252-3, DPak (2 Leads + Tab), SC-63

Price: N/A
QUICK RFQ

Specifications

Series TrenchMOS™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 75A (Tc) Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Rds On (Max) @ Id, Vgs 5.5mOhm @ 25A, 10V Vgs(th) (Max) @ Id 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 23 nC @ 5 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2180 pF @ 25 V FET Feature -
Power Dissipation (Max) 166W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
