Download Datasheet

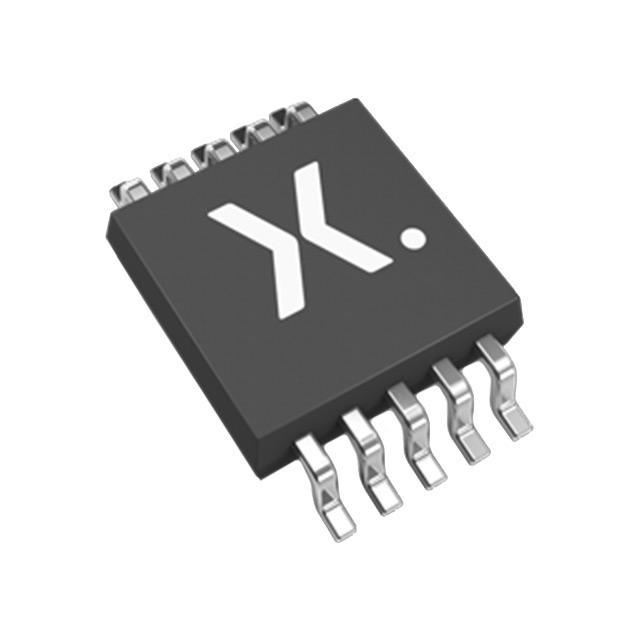

74LVC2G3157DPJ

Nexperia OEM P/N：74LVC2G3157DPJ
rohs compliant IC SWITCH SPDT X 2 15OHM 10TSSOP

11,900 pcs

N/A

10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

$0.1954 (For reference only.)
QUICK RFQ

Specifications

Series 74LVC Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1 Number of Circuits 2
On-State Resistance (Max) 15Ohm Channel-to-Channel Matching (ΔRon) -
Voltage - Supply, Single (V+) 1.65V ~ 5.5V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 5.7ns, 3.8ns -3db Bandwidth 300MHz
Charge Injection 7.5pC Channel Capacitance (CS(off), CD(off)) 6pF
Current - Leakage (IS(off)) (Max) 5µA Crosstalk -54dB @ 10MHz
Operating Temperature -40°C ~ 125°C (TA) Mounting Type Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Supplier Device Package 10-TSSOP
